Annunciator system TS400





TS400 Description

Main features

    • Building management alarm server with secure alarm chain
      Visualisation of states, values and alarms
      Data acquisition and logging also according to HACCP
      Remote control and remote operation
      Energy data management, load shedding control
      Interface management, data concentrator
      Scalable redundancy


    •

    System description

    The fault indicating and building automation system TS400 is an alarmserver in compliance with DIN 19235 and offers the perfect platform to monitor predominantly technical systems and plants.
    Thanks to the integrated visualisation and the save alarm chain your infrastructure is alway under control.
    The access for monitoring and configuration is with a web browser either directly in the CPU or with a computer within the network. All system access can be password-protected.
    The menuoperated parameterisation does not require any in-depth programming knowledge due to visualisation. The data is collected by a wide variety of analogue as well as digital inputs from the low-cost Wago range. Interfaces such as KNX, BACnet, OPC UA, ESPA444, Modbus, Unix-Syslog or SNMP-Traps can be imported and processed too.

    The TS400 alarmserver offers multitude of media to indicate any faults occurring.
    The TS400-D133 operator modules will give you up-to-date information in plain text about all system status and fault indication messages.
    Using the SIA DC-09 / Contact ID protocol, any events can be transferred to an alarm or operation center.
    Any alerts may also be sent in form voice message, fax, SMS, email or pager message to predefined groups.
    Local nodes are connected via the usual networking KAT 5 and are therefore easily integrated into the exsisting infrastructure.
    With the redundancy solution offered by the TS400, the system can be built up to complete redundancy in a scalable and fail-safe manner as required.
    The degree of synchronisation of the configuration between the TS400 CPU processor modules can be largely parameterised.



    Design

    The system comprises the following primary components:


    TS400 CPU TS400 CPU Processor

    Master control unit with 256 GB RAM. All events are recorded in log files and can be viewed and evaluated. The CPU can manage up to 128 nodes and 16 TS400-D133 operator modules. It ensures communication between all system components using standard network technology (Ethernet Cat.5). The CPU is also the platform for the visualisation / SCADA.


    TS400-DM TS400 DM Operator module LAN

    The TS400-D133 Operator module displays all messages in plaintext. When an alarm arises, the integrated acoustic alarm is also sounded. Thanks to the 13,3" Touch display the visualisation of data points, values, trending and alarms on floor plans is easy. Moreover it offers access to the configuration.


    TS400-Fernanzeige TS400 Remote display unit

    The TS400 remote display unit is a large-size LED display unit for displaying alarm text that can be read from a distance of up to 80 metres.


    TS400 Controller TS400 Fieldbus controller

    Positioned upstream, the TS400 Fieldbus controller is the intelligent starting point of each and every node. Up to 128 nodes can be used in the system. Each of these are supplied locally. Each controller can manage 2000 digital or 1000 analogue I/Os. The connection to the TS400 CPU Processor is realised with Ethernet. The TS400 Fielbus controller is expanded with the TS400 Local in- output modules.


    TS400 IO TS400 Local in- output modules

    Thanks to the integration of tried and trusted WAGO I/O technology, a broad range of inputs and outputs are available. Mostly all variants belonging to the 750 series can be used. This means an optimal, space-saving and cost-saving solution is available for all voltage variants. The data transfer to the TS400 Feldbus controller is realised with an internal bus.


    TS400 IO TS400 Autonomous input modules

    The VOICE agent can be used as an autonomous input module for the TS400 system. By doing so, you can achieve an autonomous and redundant alarm generation route in addition to the input acquisition. The network is used to connect to the TS400 CPU processor module.




    Possible mounting options:

    TS400 CPU Processor: 35mm DIN rail or on a rack tray
    Modem: 35mm DIN rail or on a rack tray
    PSU: Din rail 35mm
    TS400 Fieldbus controller and Local in-output modules: 35mm DIN rail
    TS400 Autonomous input modules: 35mm DIN rail
    TS400-D133 Operator modules: Front mounting or with 100x100mm VESA monitor stand
    TS400 Remote display unit: Wall or ceiling

    Connections:

    The connections to the nodes are made using network cables (min. Cat. 5) in a star configuration from the switch. Standard technology is used and existing cabling can be integrated. However, of the alarm network is to fully separated, a cabling system can be installed from the CPU which is fully independent of the company network

    Basic principle:

    Click on the drawing for a larger view

    TS400







    Communication / Interfaces / Protocols


    The TS400 offers a variety of communication options:

    TS400

    Local Remote
    Display on the TS400-D133 Operator modules in plaintext
    Visualisation, e.g. on floor plans on the TS400-D133 Operator modules
    Display on the TS400 Remote displays in plaintext
    Activate lamp/horn outputs on the output modules
    Local or network log printer
    Pop up message on existing PCs
    Graphical display on existing PCs
    		 Voice messages with acknowledgement and intervention time
    SMS
    Link to alarm centers / control rooms
    Messages to pager
    Email




    Protocol processing

    The TS400 Annunciator- and building automation system is able to handle several standard protocols. They are mainly used for communication and data exchange:

    TS400




    Protocol Interface Utilisation Benefit Requirements
    KNX Network Receiving status messages -Integration of signal sources without additional cabling
    -Integration in the visualisation    		 -TS400 CPU Processor with network integration
    -KNX-Interface
    BACnet Ip client Network Receiving alarm and status messages -Integration of signal sources without additional cabling
    -Integration in the visualisation    		 -TS400 CPU Processor with network integration
    OPC-UA Network Receiving status messages -Integration of signal sources without additional cabling
    -Integration in the visualisation    		 -TS400 CPU Processor with network integration
    SIA DC-09 CID sending Network Sending alarm and status messages -Simple integration to alarm and control centers -TS400 CPU Processor with network integration
    -enabled communication path the control center
    -control center subscription
    SIA DC-09 CID receiving Network Receiving of alarm and status messages -Integration of alarm intrusion systems
    -Integration in the visualisation
    -Parallel alarming    		 -TS400 CPU Processor with network integration
    MQTT Network Receiving of alarm and status messages -Integration of IOT signals and values without cabling
    -Integration in the visualisation and trending    		 -TS400 CPU Processor with network integratio
    Voice over IP / SIP external Network Sending external voice messages -Inexpensive fees
    -Several simultaneous calls    		 -TS400 CPU Processor with direct internet access
    -SIP account with sufficient funds
    Voice over IP / SIP internal Network Sending internal voice messages -No fees
    -Several simultaneous calls    		 -TS400 CPU Processor with network integration
    -PBX with SIP capability
    -PBX with network integration
    -TS400 as registered PBX user
    SNMP Client Network Receiving values and alarm and status messages -Integration of signal sources without additional cabling
    -Dynamic alarm generation    		 -TS400 CPU Processor with network integration
    -Signal source as SNMP server with network integration
    SNMP-Trap receiving Network Receiving alarm and status messages -Integration of signal sources without additional cabling
    -Dynamic alarm generation    		 -TS400 CPU Processor with network integration
    -Signal source with network integration
    SNMP-Trap sending Network Sending alarm and status messages -Integration of signal receivers without additional cabling -TS400 CPU Processor with network integration
    -Signal receiver with network integration
    ESPA444 receiving Serial RS232 Receiving alarm messages -Integration of signal sources
    -Dynamic alarm generation    		 -Connection cable
    ESPA444 sending Serial RS232 Sending alarm messages -Integration of signal receivers
    -Redundant alarm forwarding    		 -Connection cable
    Unix-Syslog receiving Network Receiving alarm and status messages -Integration of signal sources without additional cabling -TS400 CPU Processor with network integration
    -Signal source with network integration
    ATAS sending Network Sending text messages on internal phones -Several simultaneous text messages on internal phones
    -Possibility to acknowledge    		 -TS400 CPU Processor with network integration
    -PBX with ATAS licence
    -TS400 as registered PBX user
    CSTA sending Network Sending text messages on internal phones -Several simultaneous text messages on internal phones
    -Possibility to acknowledge    		 -TS400 CPU Processor with network integration
    -PBX supporting CSTA protocol
    -TS400 as registered PBX user
    Modbus receiving Network and serial Receiving status messages and values -Integration of signal sources
    -Dynamic alarm generation
    -Integration of analogue values/trending    		 -TS400 CPU Processor with network integration
    -Connection cable
    -Device specific adaptation
    Mail reception by SMTP Network Receiving status messages -Integration of signal sources without additional cabling
    -Dynamic alarm generation
    -Possibility for project specific interpretation    		 -TS400 CPU Processor with network integration
    -Project specific integration
    Mail sending by SMTP Network Sending status messages -Integration of signal receivers without additional cabling
    -Configurable format    		 -TS400 CPU Processor with network integration
    XPL Network Receiving status messages and values -Integration of signal receivers
    -Integration of radio modules
    -Integration of analogue values/trending    		 -TS400 CPU Processor with network integration
    -Network integrated XPL Gateway


    An additional communication option is remote access over the Internet. After logging in, users can monitor the actual status of the system. Any alarms that occur can be acknowledged. Various log files can be called up to view all alarms which arose in the past and how they were responded to.





    Visualisation


    The TS400 offers various possibilities to present and visualise alarms, actual values and operating conditions. The trending function example given is prepaired to manage analogue values. By filling in a figure in the field "Trend" the value ist automatically shown on the page "Trending" in the main menue:


    TS400 Visulaisierung




    The detailed configuration is entered by clicking on the graph. In this sub-menue it is possible to edit the graph, export the values as CSV file or query past values.
    Due to the data retention the trending funcion is also dedicated for the temperature recording of cold storages according to the HACCP concept:


    TS400 Visulaisierung




    Also digital signals/alarms can be visualised. The alarms or status signals can be shown on background images or ground plans. This overview enables a quick location of the alarm source:


    TS400 Visulaisierung




    Moreover, it is possible to visualise analogue values example given the actual temperature of the server room. Integrating switch buttons in the visualisation allows the user to control digital outputs.



    Programming

    Since all the programming takes place fully in the browser, there is no need to purchase software and updates. The configuration comes with graphics and is menu-based. The system can be programmed using any network PC, or a laptop connected to the switch. Participants are divided into groups for the purpose of alerting. Each entry may have a short text message (SMS) or long fax message as well as a language profile assigned to it. Otherwise, the TS400 will create a voice messages using the built in Text-to-Speech-Engine.
    The fault indicating system TS400 includes a timer with numerous integrated functions. There are channels for weekdays, public holidays and other special days. These channels may be used to control how the alerts are being transmitted. There is also an option of disabling inputs or to switch outputs directly. Outputs are controlled according to fault indicating procedure DIN 19235 or via direct links.

    The entire unit can be maintained and controlled remotely by APS systems AG

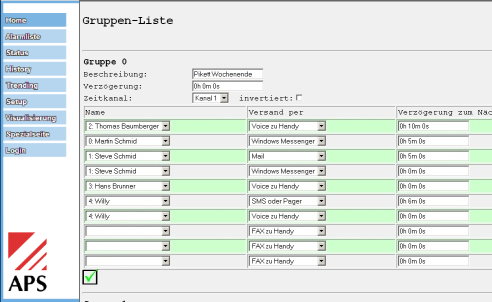

    Example: Programming the user group

    TS400



    TS400 Order overview

    Order numberDesignationAppendageStock*1Price*2
    750-430IM Input module, 8 channel digital 24VDC 8cage clamp connectors18152.00 CHF
    750-4522-Kanal Analog Eingangsklemme 0-20mADifferenzeingang489.00 CHF
    750-4534-Kanal Analog Eingangsklemme 0-20mASingle-Ended1452.00 CHF
    750-4612-Kanal Analog EingangsklemmeWiderstanssensor PT100 / RTD1525.00 CHF
    750-517OM Output module, 230VAC,potential-free 2 C/O cage clamp contacts18140.00 CHF
    750-5308-Kanal Digital Ausgangsklemme 24VDCKurzschlussfest, positiv schaltend7145.00 CHF
    750-600Bus end terminal TS35439.00 CHF
    750-612Potential feed for input terminals357.00 CHF
    750-613Potentialeinspeisung DC 24 Vmit Busnetzteil2219.00 CHF
    750-627Klemmenbusverläng. - EndklemmeRJ45 Anschluss1127.00 CHF
    750-628Klemmenbusverläng. - KopplerklemmeRJ45 Anschluss1193.00 CHF
    832.700.110TS400 CPU 256GB SSD CZ DA-1100-N42 inkl. DIN Rail Kit53744.00 CHF
    832.700.490Wandhalterung BIAS400, VESA-Standard Fix-Montage, belastbar 18kg, schwarz6100.00 CHF
    832.700.494TS400-D133 Einbauhalterungschwarz735.00 CHF
    832.700.495TS400-D133 Desktop Netzteil (CH)Output: 12.0V / 4A68.00 CHF
    832.700.496TS400-D133 Desktop Netzteil (EU)Output: 12.0V / 4A468.00 CHF
    832.700.550TS400 Field Bus Controller 24VDC2x RJ45, 10/100 Mbit/s, with TS400 Firmware21531.00 CHF
    832.700.908GSM modem xmodus XM1510S with DIN-railmounting clip, antenna and serial cable1488.00 CHF
    832.900.948Roline Fast Ethernet Switch5 x 100Base-T Ports 7-30VDC135.00 CHF
    862.332.450EcoPower PSS245230VAC, 50Hz, 24VDC/5A3106.90 CHF
    TS400-D133TS400 operator module capacitive touch 13.3"LAN/serial, full HD with speaker12508.00 CHF
    XPOL-1-5GOmnidirectional LTE MIMO Antenna698-690 MHz / 2170-2700 MHz / 3400-3800 MHz7168.00 CHF
    *1: Stock levels are for reference only. The handout is done upon incoming orders.
    *2: Prices are uncommitted, errors are excepted.
