TS400 Fieldbus controller previous version





Description

The fieldbus controller 750-841 had been replaced by the new version 832.700.500

The controller is the intelligent upstream starting point of each and every node. Up to 128 nodes can be used in the system. All of these are supplied locally. Each controller is able to manage 64 directly and 250 with the bus extension. This results in up to 2000 digital or 1000 analogue I/Os per node. Please note the maximum I/O consumption of 1700mA which the contoller is able to provide. The WAGO 750-841 is used as the basic controller. The node can be connected to the WAGO I/O module of the 750 series. This provides a cost-effective range of inputs and outputs in all possible voltage variants.

The nodes are connected via a network cable (min. Cat. 5).


Application example:


TS400 Controller

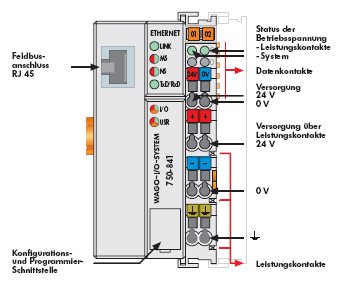

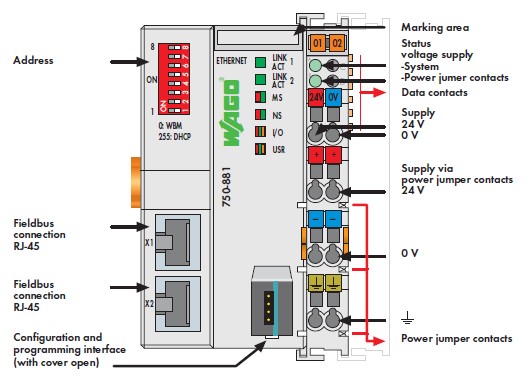

View


TS400 Controller


Technical data

Program memory 512 kByte
System structure
Digital signals
analogue signals
Max. no. of I/O modules
Max. no. of I/O modules with bus extension

2000 (Example with 250 pcs. 8 cannel inputs)
1000
64
255
Supply voltage 24 VDC
Total current for the I/O modules 1700mA (Extensible with the power supply module 750-613)
Temperatures
Operating
Storage

0 bis +55 °C
-25 bis +85 °
Housing Plastic
Connection Cage Clamp 2,5mm2
Mounting 35mm DIN rail
Protection category IP 20
Dimensions (B x H x T) 51 x 65 x 100
Weight 180 g
