EcoPower PSS and PSR power supplies

Products > Control panel components > Power supplies and transformers > PSS/PSR >
Power supply PSS
 Description
Technical data
Dimensions
Schematic
Order overview
Downloads

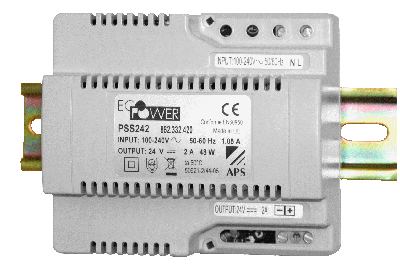

EcoPower PSS / PSR power supply





Description

All EcoPower PSS/PSR power supplies are protected against overload and short circuit. The units can be mounted directly onto the snap-on DIN rail and are suitable for assembly in equipment cabinets with a 47mm front panel cut-out. Both series have an SELV output.

The compact EcoPower power supplies are available in two versions for DIN rail assembly:

PSS primary switch mode
  • No minimul load required, constant output voltage throughout the load range of 0 - 100%
  • No Hiccup-mode
    Difficult loads as motors cause no problem. Constant current mode during overload
  • High stability, no ringing or overshoot
  • LED operation indicator
  • DC input voltage

PSR regulated and smoothed
  • No minimul load required, constant output voltage throughout the load range of 0 - 100%
  • High reliabilty
  • Low ripple



Technical data


PSS primary switch mode

- Insulation class II
- Degree of protection IP00 (with clamp cover IP20)
- Temperature range -5 to +50°C
- Electronic overload and short circuit protection
Part number Description Input VAC Output VDC Current Limitation Input VDC Output W Dimensions
862.331.212 PSS 121.2 100-240 VAC 12 VDC 1.25 A 1.7 A 130-350VDC 15 W 52.5x93x68.5 mm
862.331.220 PSS 122 100-240 VAC 12 VDC 2 A 2.4 A 130-350 VDC 24 W 87.5x93x68.5 mm
862.331.230 PSS 123 100-240 VAC 12 VDC 3 A 3.9 A 130-350 VDC 36 W 72x93x68.5 mm
862.331.240 PSS 124 230 VAC +/- 10% 12 VDC 4 A 5.2 A 280-350 VDC 48 W 105x93x68.5 mm
862.331.250 PSS 125 230 VAC +/- 10% 12 VDC 5 A 5.4 A 280-350 VDC 60 W 140x93x68.5 mm
862.332.406 PSS 240.6 100-240 VAC 24 VDC 0.6 A 0.9 A 130-350 VDC 15 W 52.5x93x68.5 mm
862.332.410 PSS 241 100-240 VAC 24 VDC 1 A 1.2 A 130-350 VDC 24 W 35.5x93x68.5 mm
862.332.420 PSS 242 100-240 VAC 24 VDC 2 A 2.8 A 130-350 VDC 48 W 72x93x68.5 mm
862.332.440 PSS 244 230 VAC +/- 10% 24 VDC 4 A 4.4 A 280-350 VDC 96 W 72x93x68.5 mm
862.332.450 PSS 245 230 VAC +/- 10% 24 VDC 5 A 6.3 A 280-350 VDC 120 W 105x93x68.5 mm

PSR regulated and smoothed

- Protection class II
- Degree of protection IP00 (with clamp cover IP20)
- Temperature range -5 to + 40°C
Part number Description Input voltage Output voltage Current Overload protection Short circuit protection Output Dimensions
862.341.205 PSR 120.5 230 VAC +/- 10% 12 VDC 0.5 A Fuse Fuse 6 W 87.5x93x68.5 mm
862.341.210 PSR 121 230 VAC +/- 10% 12 VDC 1 A Fuse Fuse 12 W 87.5x93x68.5 mm
862.342.405 PSR 240.5 230 VAC +/- 10% 24 VDC 0.5 A Electronic Electronic 12 W 105x93x68.5 mm
862.342.410 PSR 241 230 VAC +/- 10% 24 VDC 1 A Electronic Electronic 24 W 140x93x68.5 mm




Dimensions

PSS

Housing Width Height Depht
2 modules 35mm 93mm 68.5mm
3 modules 52.5mm 93mm 68.5mm
4 modules 72mm 93mm 68.5mm
5 modules 87.5mm 93mm 68.5mm
6 modules 105mm 93mm 68.5mm
8 modules 140mm 93mm 68.5mm




Schematic

Diagram PSS

PSS

Diagram PSR

PSS



Order overview


PSS primary switch mode
Part number Image Description Voltage Current Housing Shop
862.331.212 Power Supply PSS PSS 121.2 12 VDC 1.25 A 3 M
862.331.220 Power Supply PSS PSS 122 12 VDC 2 A 5 M
862.331.230 Power Supply PSS PSS 123 12 VDC 3 A 4 M
862.331.240 Power Supply PSS PSS 124 12 VDC 4 A 6 M
862.331.250 Power Supply PSS PSS 125 12 VDC 5 A 8 M
862.332.406 Voltage Supply PSS PSS 240.6 24 VDC 0.6A 3 M
862.332.410 Voltage Supply PSS PSS 241 24 VDC 1 A 2 M
862.332.420 Voltage Supply PSS PSS 242 24 VDC 2 A 4 M
862.332.440 Voltage Supply PSS PSS 244 24 VDC 4 A 4 M
862.332.450 Voltage Supply PSS PSS 245 24 VDC 5 A 6 M

PSR regulated and smoothed
Part number Image Description Voltage Current Housing Shop
862.341.205 Voltage Supply PSR PSR 120.5 12 VDC 0.5 A 5 M
862.341.210 Voltage Supply PSR PSR 121 12 VDC 1 A 8 M
862.342.405 Voltage Supply PSR PSR 240.5 24 VDC 0.5 A 6 M
862.342.410 Voltage Supply PSR PSR 241 24 VDC 1 A 8 M





Downloads
