LSE Indicator unit



The LSE indicator unit is used to signal up to 16 messages/signals.
The field of application ranges from the display in machine and apparatus fronts to the collective signalling of building services systems.
It is mounted in a standard cut-out. The devices are wired with the supplied screw plug-in terminals on the rear.
This ensures quick replacement and simple control measurements.
The LSE indicator unit is equipped with 16 LEDs for signalling and 1 green LED for indicating the system's operation.
The 16 LEDs are available in different standard colours. Individual colour combinations are also possible. The units are equipped with a button for lamp test (LT) on the front side. The horn acknowledgement (HQ) and lamp acknowledgement (LQ) buttons are not used. The lamp test (LT) can also be performed by an external button. The signal inputs are switchable in two groups of eight between normally closed and normally open. An on delay of 5, 60 or 600 seconds can be set for all signal inputs. The relays for collective and group alarm each have one contact with common potential. Normally closed or normally open can be selected for both relays.
The signal and supply voltage is available in various common variants. As a further option, devices with one output relay per input are available.


Signal inputs
The signal inputs can be reprogrammed with the DIP switches 3 and 4 in two groups of eight to either normally open NO or normally closed NC.
With the DIP switches 10 and 11 a globally input delay of 0, 5, 60 or 600 se-conds can be selected.

Output relays D (optional) The output relays are assigned to the signal input with the same number and are working as image of the signal input.

Lamp test LT The lamp test button activates all LED's for about 5 seconds. If several units are connected together the lamp test is overlapping.

Group alarm GR The group alarm relay is active as long as a signal input of the own device is active. The relay switches off when all signal inputs of the unit are off. The DIP switch 9 can be used to switch between normally closed and normally open for the two relays common and group alarm.

Common alarm SA The common alarm relay is active as long as a signal input is active. If the unit works in a network the relay is activated by every signal input in the whole system. The relay switches off when all signal inputs are off. The DIP switch 9 can be used to switch between normally closed and normally open for the two relays common and group alarm.

Audible device / Horn The internal alarm (buzzer) and the relay contact are without function.

Function diagram

LSE Indicator unit


Please click on the image for a larger view or go to the download of the wiring diagram sheet

Indicator Unit with 8 Inputs / single colour LED's

Schema LSE Anzeigebaustein

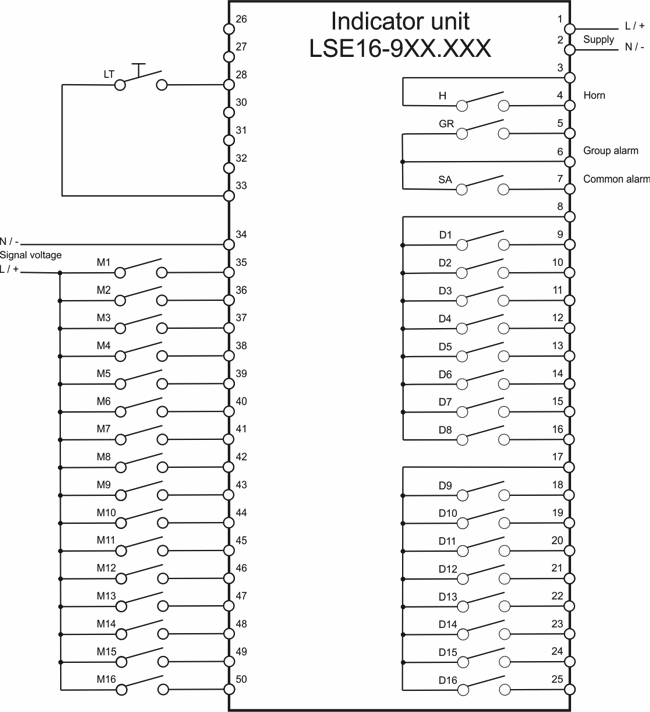

Indicator Unit with external signal voltage

Schema LSE Anzeigebaustein


The programming is done with a DIP switch on the back of the device.
Changes in programming are activated immediately, a restart is not necessary.
The extended programming is not used at the moment.

Programmierung LSE Anzeigebaustein

M: Signal inputs
SA: Common alarm relay
GR: Group alarm relay
NO: Normally open
NC: Normally closed


LSE Massbild

H B H1 B1 ET T1 T2
144mm 72mm 136mm 65mm 170mm 154mm 8.5mm

Technical data

Signalisation16 LED
Signal inputsNO or NC selectable in two groups
On delay signal inputs M0 / 5 / 60 / 600 seconds
Reaction time signal inputs M1 second
LED coloursRed, white, yellow, green, blue
Power consumption idle3W
Power consumption maximum20W
System relays H/GR/SASwitching capacity 250VAC 6A
Output relays DSwitching capacity 250VAC 6A
Frequency range AC versions40-60 Hz
Weight without output relays D580g
Weight with output relays D680g
Dimensions WxHxD72x144x170mm
Front cut-out138x68mm
ConnectorsPlug-in screw terminals 0.2 – 2.5mm2
Mounting positionAny
Protection degree housingIP40
Protection degree connectorsIP20
Temperature range-20 to +65°C
Signal voltages
External versions24 / 48 / 60 / 110 / 230V AC/DC
Internal version24VDC
Threshold ON2/3 of the signal voltage (peak)
Threshold OFF1/2 of the threshold ON
Voltage endurance360VAC / 500VDC
Supply voltages
24VDC20-30 VDC
48VDC40-55 VDC
60VDC51-78 VDC
110VDC93-127 VDC
230V AC/DC90-260 VAC / 126-360VDC

Order overview / Selection guide
