| TS400 Fieldbus controller previous version | ||
Description
The fieldbus controller 750-841 had been replaced by the new version 832.700.500The controller is the intelligent upstream starting point of each and every node. Up to 128 nodes can be used in the system. All of these are supplied locally. Each controller is able to manage 64 directly and 250 with the bus extension. This results in up to 2000 digital or 1000 analogue I/Os per node. Please note the maximum I/O consumption of 1700mA which the contoller is able to provide. The WAGO 750-841 is used as the basic controller. The node can be connected to the WAGO I/O module of the 750 series. This provides a cost-effective range of inputs and outputs in all possible voltage variants.
The nodes are connected via a network cable (min. Cat. 5).
Application example:

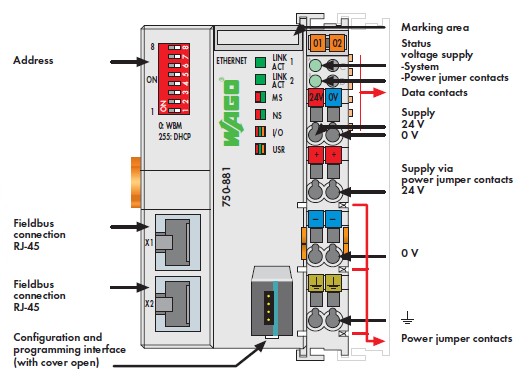

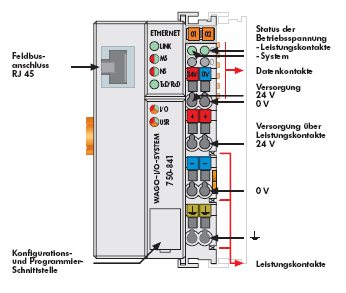

View
Technical data
| Program memory | 512 kByte |
|---|---|
| System structure Digital signals analogue signals Max. no. of I/O modules Max. no. of I/O modules with bus extension |
2000 (Example with 250 pcs. 8 cannel inputs) 1000 64 255 |
| Supply voltage | 24 VDC |
| Total current for the I/O modules | 1700mA (Extensible with the power supply module 750-613) |
| Temperatures Operating Storage |
0 bis +55 °C -25 bis +85 ° |
| Housing | Plastic |
| Connection | Cage Clamp 2,5mm2 |
| Mounting | 35mm DIN rail |
| Protection category | IP 20 |
| Dimensions (B x H x T) | 51 x 65 x 100 |
| Weight | 180 g |
