Diode blocks / Lamp test modules

Description

The diode block function modules together with their various construction elements are complete, connection-ready components. They are mounted easily by snapping them on to standard rails.

These modules can be used to implement lamp tests for block diagrams, control panels or displays etc. These modules can also be used as jumper switches for SPS controls. One switch can be used to activate all the important output relays (e.g. light outputs) manually to avoid interruptions to the supply when carrying out maintenance and repair work.

The blank BDL module can be used for special applications. For example, these modules can be configured with compensating resistances.

Lamp test modules

BTK-11-2

22 Diodes for lamp test DC
11 lamp loops with common cathode

Function modules

BDX-12-3

12 diodes for free-wiring

BDL

Freely-configurable blank experimentation module

Technical data

Housing	Polyamid
Connections	Screw terminals 4mm²
Diodes	1N4007
Temperature range	-40 to +70°C
Dimensions WxHxD	68x82x51mm
Mounting	35mm DIN-rail EN50022 / 32mm C-rail EN50035
Mounting positon	any
Weight	80-100g depending on version
Protection degree	IP10 (BDL depending on assembly)

Dimensions

Order overview

	Order number	Designation	Appendage	Stock*1	Price*2
	BDA-22-2	Function blocks, 22 diodes	with common anode in 2 groups	10	55.00 CHF
	BDL	Function modules, leer		3	42.00 CHF
	BDX-12-3	Function blocks, 12 diodes	for free-wiring, DIN-rail	56	47.00 CHF

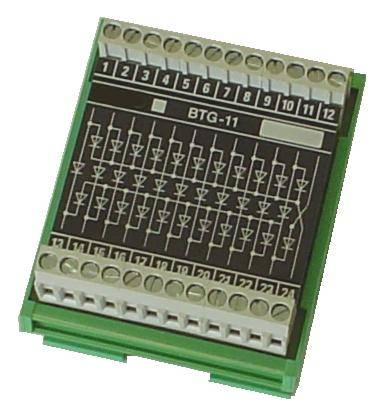

	BTG-11-3	Lamp-test module DC, 33 diodes	11 circle with common cathode or anode	56	58.00 CHF
	BTW-10-2	Lamp-test module AC, 23 diodes	for maximum 250VAC / 100mA	50	58.00 CHF

*1: Stock levels are for reference only. The handout is done upon incoming orders.

*2: Prices are uncommitted, errors are excepted.
