Common alarm indicator AS1200

		Descripion Technical data Schematic Dimensions Order overview Downloads
Common alarm indicator AS1200

Description

The AS1200 is a new-value group alarm system with 12 inputs. As soon as an alarm contact closes, the potential-free contact is closed which can then, for example, activate a horn. This contact remains closed until it is acknowledged. The system is designed for DIN rail assembly.

The AS1200 is available in both a positive 24 V- and a negative 24V version.

Technical data

Inputs	12 normally open
Housing	45 x 68 x 83mm
Installation position	any
Connections	Screw-terminals, max. 2.5mm2
Temperature range	-20°C to +50°C
Degree of protection	IP00
Supply voltage	24VDC / 24VAC
Switching capacity, output	max. 2A/60VDC max. 4A/230VAC
Recovery time	< 2 secs.
Minimum control pulse	> 50 ms
Power consumption at 24V DC	1.5W
Mounting	DIN- or C-Rail
Weight	130g

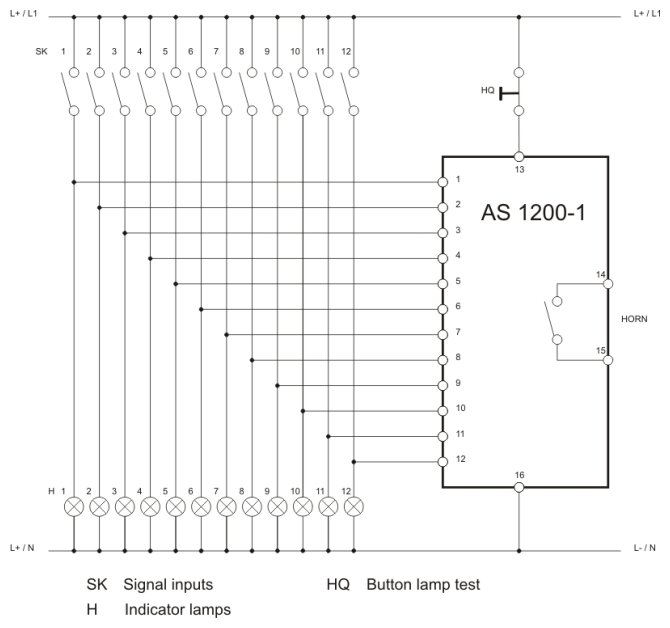

Schematic

Please click on the image for a larger view or go to the download of the wiring diagram sheet

Dimensions

Order overview

	Order number	Designation	Appendage	Stock^*1	Price^*2
	824.512.01	AS 1200-1 Common alarm indicator +24VAC/DC	DIN- Rail, positive inputs	8	205.00 CHF
	824.512.02	AS 1200-2 Common alarm indicator -24VAC/DC	DIN- Rail, negative inputs	10	205.00 CHF

^*1: Stock levels are for reference only. The handout is done upon incoming orders.
