Lamp test modules / Function modules





Description

The function modules together with their various construction elements are complete, connection-ready components. They are mounted easily by snapping them on to standard rails.

These modules can be used to implement lamp tests for block diagrams, control panels or displays etc. These modules can also be used as jumper switches for SPS controls. One switch can be used to activate all the important output relays (e.g. light outputs) manually to avoid interruptions to the supply when carrying out maintenance and repair work.

The blank BDL module can be used for special applications. For example, these modules can be configured with compensating resistances.



Lamp test modules

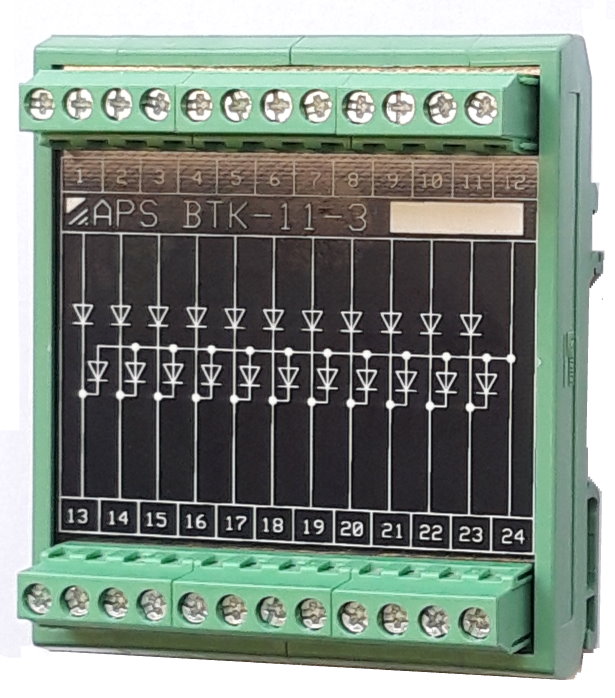

BTK

BTK-11-2

22 Diodes for lamp test DC
11 lamp loops with common cathode


BTK



BTG
BTG

BTG-11-3

33 diodes for lamp test DC DC
11 Lamp loops with common cathode or anode
Can also be used as a basic group alarm

Possible application

Lamp test with group alarm

BTG HS=group alarm





BTW
BTW

BTW-10-2

23 diodes for lamp test AC
For lamp operation, max. 250V AC max. 100mA per lamp


Possible application

Lamp test

BDA







Function modules

BDA
BDA

BDA-22-2

22 diodes with common anode in two groups


Possible application

Simple lamp test

BDA




BDX

BDX-12-3

12 diodes for free-wiring
BDX


BDL

BDL

Freely-configurable blank experimentation module
BDX



Technical data

Housing Polyamid
Connections Screw terminals 4mm2
Diodes 1N4007
Temperature range -40 to +70°C
Dimensions WxHxD 68x82x51mm
Mounting 35mm DIN-rail EN50022 / 32mm C-rail EN50035
Mounting positon any
Weight 80-100g depending on version
Protection degree IP10 (BDL depending on assembly)




Dimensions

Massbild

Massbild






Order overview


Part number Image Description Shop
BTG-11-3 BTG BTG-11-3 / 33 diodes for lamp test DC
BTW-10-2 BTW BTW-10-2 / 23 diodes for lamp test AC
BTK-11-2 BTK BTK-11-2 / 22 diodes for lamp test DC
BDA-22-2 BDA BDA-22-2 / 22 diodes with common anode in two groups
BDX-12-3 BDX BDX-12-3 / 12 diodes for free-wiring
BDL BDL BDL Freely-configurable blank experimentation module
