| APS-ALERT-CLOUD AAC | ||
AAC Description
GeneralMaximum security with minimal hardware: With the APS-ALERT-CLOUD, you can reliably monitor and alert your infrastructure remotely.
The cloud-based alarm server from APS systems AG ensures fail-safe alarm transmission via redundant communication paths. Operation and configuration are carried out intuitively through a modern user interface.
The APS-ALERT-CLOUD (AAC) is the perfect solution for monitoring and alerting systems with up to 16 IOs or alarm contacts.
Installed IOs on-site capture all relevant signals and securely transmit them to the APS-ALERT-CLOUD for seamless and rapid response.
Programming
Alarm configuration is conveniently carried out via the user-friendly web interface of the APS-ALERT-CLOUD.
The AAC Fieldbox is delivered preconfigured and automatically establishes a connection to the APS-ALERT-CLOUD upon commissioning.
To integrate the LSE-D16 or LSH into the APS-ALERT-CLOUD, only the target address for the APSdg protocol needs to be configured in the respective device.
Communication Paths
The basic requirement for device communication is internet connectivity via a LAN connection. All IO modules are therefore equipped with a network port. Alternatively, or additionally, communication can take place via the LTE network.
The AAC Fieldbox has an integrated LTE modem. For the LSE-D16 and LSH models, an external router is used for LTE connectivity.
Connection interruptions are automatically detected and reported to the participants.
Alerting
Alerting is performed via a voice message directly from the APS-ALERT-CLOUD. Alarms can be sent to up to five participants.
The AAC also offers a secure alarm chain: Each participant must acknowledge the alarm using their personal code.
If the defined intervention time is exceeded, the system automatically restarts the alarm chain.
Additionally, alarms can also be sent via email or SMS to ensure maximum availability.
Data Acquisition Inputs
Various devices, tailored to specific requirements, are available for data point acquisition.AAC Fieldbox
The AAC Fieldbox is the smallest acquisition unit of the APS-ALERT-CLOUD, featuring three digital and one analogue input.
It is particularly suitable for remote locations such as pumping stations and offers two communication options: LAN and GSM.
Local operation or visualisation is not provided.

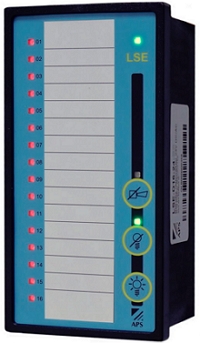

LSE-D16
The LSE-D16 offers two sets of 16 digital inputs, whose states are transmitted to the cloud.
The LSE-D16 enables reliable monitoring of the operational status of entire plants and machinery, with the ability to trigger alarms.
Its application range includes switchgear in commercial and residential buildings, as well as control systems for cooling plants, district heating centres, transformer stations, and server rooms.
Integration is carried out via the network or optionally through a GSM router.
A major advantage is the local visualisation and operation.
Technical Data
| Acquisition ACC fieldbox | |
|---|---|
| Inputs/outputs | 3 digital inputs/ open collec. outputs |
| Analogue inputs | 1 analogue input |
| Supply voltage | 9-30VDC |
| Temperature range | -40 to 72°C |
| Dimensions | 83x25x74mm |
| Weight | 165g |
| Power consumption | Typically 1.5 W, maximum 5W |
| Antenna connection | SMA |
| Acquisition LSE-D16 | |
| Inputs/outputs | 2 × 16 digital inputs / 3 relay outputs |
| Supply voltage | 8-30VDC / 12-28.5VAC, 40-80Hz |
| Temperature range | 0°C bis 65°C |
| Dimensions | 72x144x75mm |
| Weight | 260g |
| Power consumption | Typically 1,5W, maximum 3W |
| CLOUD | |
| Alarms | Voice message, email, SMS |
| Users | Max. 5 |
| User access | Web interface |
| Logging All | events |
Order overview
| Order number | Designation | Appendage | Stock*1 | Price*2 | ||
|---|---|---|---|---|---|---|
| 4991.70344 | LTE Stummel-Antenne | 195mm mit Gelenk SMA-M | 4 | 17.35 CHF |    | |
| 832.832.100 | APS AAC-Fieldbox 3DIO 1AI |  | 292.00 CHF | | ||
| 832.832.200 | APS-AAC Cloud Jahreslizenz | Erfassung einer Fieldbox | | 445.00 CHF | | |
| 862.332.420 | EcoPower PSS242 | 90-260VAC, 50Hz, 24VDC/2A | 23 | 73.10 CHF | | |
| 880-OMNI-280-2 | Omnidirektionale LTE/5G Antenne | Magnet-/Wand-/Mastmontage 2m Kabel | 11 | 35.00 CHF | | |
| LSE-D16-AB | Indicator unit 24V DC/AC | 2x 16 inputs, multicolour LED | 6 | 395.00 CHF | |
| *1: Stock levels are for reference only. The handout is done upon incoming orders. |
| *2: Prices are uncommitted, errors are excepted. |
