| Annunciator system TS400 CPU previous version | ||
Description
The TS400 CPU 832.700.103 had been replaced by the new version 832.700.107The CPU processor is the command centre of the TS400 Fault monitoring system. It has a clock frequency of 500Mhz and 512MB RAM. All events are recorded in log files and can be viewed and evaluated. All log files can be exported as a CSV-file. The CPU can manage up to 128 nodes and 16 BIASs. It safely manages the communication between all system components using standard network technology (Ethernet Cat. 5). A connected analogue modem is used to send messages.
The CPU has connections for a log printer, two networks and the modem. The supply has its own external power supply.
Dimensions
Technical data
| Main memory | 512 MB |
|---|---|
| Processor speed | 500 MHz |
| System structure I/O-nodes BIAS control module |
128 16 |
| Interfaces LAN a LAN b COM 1 COM 2 |
Technet (Nodes) Cusotmer network Modem BIAS local |
| Clock | Synchronization by internet |
| Supply voltage | 10-30 VDC |
| Temperature range operating storage |
0 to +40 °C -25 to +70 °C |
| Housing | Aluminium |
| Mounting | -on rack tray -35mm DIN rail (optional) |
| Protection category | IP 20 |
| Dimesions (B x H x T) | 165 x 46 x 110 mm |
| Weight | 700 g |

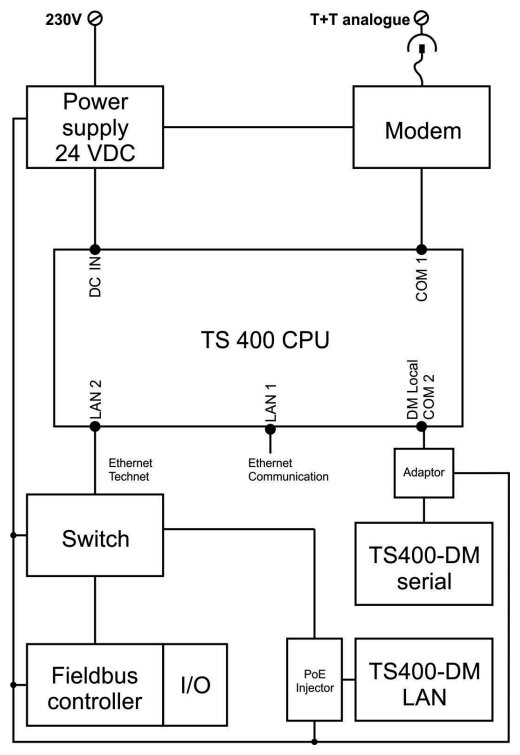

Schematic
