SMS agent remote alarming





SMS agent Description

The remote alarming module SMS agent is a compact GSM remote control module for DIN-rail mounting. It comes in 24V DC and 230V AC versions. The SMS agent is equipped with four digital- and two analogue inputs. for which there are four digital outputs. All events can be recorded using a memory and called up at any time. It is the ideal system for transmitting status- or alarm alerts via SMS, fax or email. The outputs can be activated either via SMS or locally via connections with the inputs.

The system is delivered as a complete package comprising the remote control module, software, programming cables and antennae. The software is free-of-charge and can be downloaded from our site.

The SMS agent is available in various versions. These versions have different supply voltages and different configurations of the analogue inputs.




Technical data

Indicators System: Operating status OK (constant green)
Power: Supply voltage OK (contstant green)
Rxd/Txd: Serial communication active (flickering yellow)
Modem: Modem status OK (blinking red)
Max. no. of saved messages at any one time 20
Max. no. of telephone numbers 30
No. of pikett profiles 3
Housing Anodised aluminium, HxWxD= 80 x 162 x 62mm
Installation position any
Connections Plug-in screw-terminals, max. 1.5mm2
Temperature range -10°C to +55°C
Protection category IP20
Supply voltage 24VDC +/- 20%
Switching capacity, outputs max. 0.5A / 10-30 VDC
Max. power consumption max. 120mA
Real time clock Automatic leap-year adjustment
Accurate to less than +/- 1s at 25°C
Battery internal lithium battery, 800mA
Digital inputs Voltage activated, 10-30V DC
Voltage deactivated, max. 3V DC
Analogue inputs V type Measuring range: 0-10V
Input impedance: 100kΩ
Limiting value: +/- 40V DC
Sampling interval: Min. 100mS
Analogue inputs, A type Measuring range: 4-20mA
Input impedance: 100Ω
limiting value: +/- 30mA DC
sampling interval: Min. 100mS
PT 100 input Measuring range: PT100 -50 to 100°C
Configuration: 2 or 3 wire

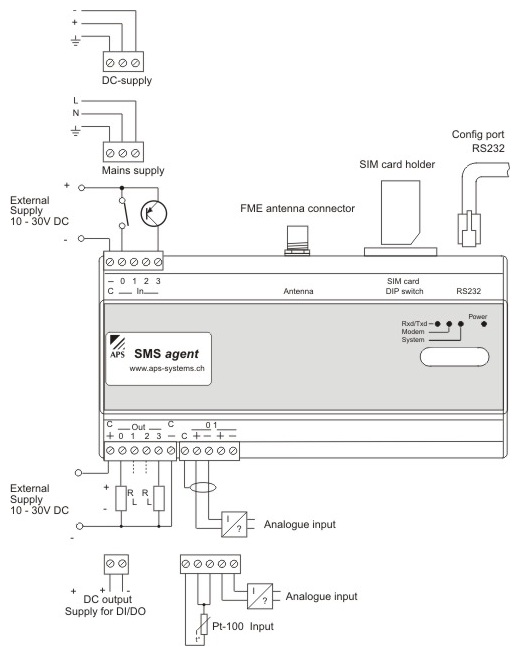

Schematic

SMS

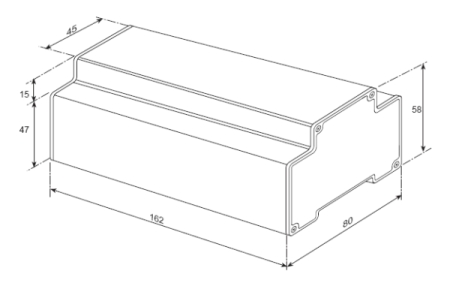

Dimensions

SMS



Order overview

Part number Picture Description Shop
GC-10/24.A SMS agent SMS agent 24V DC/ 4 digital inputs/ 2 analogue inputs 4-20mA
GC-10/24.V SMS agent SMS agent 24V DC/ 4 digital inputs/ 2 analogue inputs 0-10V
GC-10P/24.A SMS agent SMS agent 24V DC/ 4 digital inputs/ 1 analogue input 4-20mA/ 1 PT100 input
GC-10P/24.V SMS agent SMS agent 24V DC/ 4 digital inputs/ 1 analogue input 0-10V/ 1 PT 100 input
GC-10/230.A SMS agent SMS agent 230V AC/ 4 digital inputs/ 2 analogue inputs 4-20mA
GC-10/230.V SMS agent SMS agent 230V AC/ 4 digital inputs/ 2 analogue inputs 0-10V
GC-10P/230.A SMS agent SMS agent 230V AC/ 4 digital inputs/ 1 analogue input 4-20mA/ 1 PT100 input
GC-10P/230.V SMS agent SMS agent 230V AC/ 4 digital inputs/ 1 analogue input 0-10V/ 1 PT 100 input
862.332.440 SMS agent Fernwirken EcoPower PSS 244 230V AC/24V DC 4A power supply unit for DIN rail assembly
UCA-AM SMS agent Fernwirken GSM antenna with magnetic base, dual band with 2m connection cable
60603032E SMS agent Fernwschalten GSM station antenna, dual band with 5m connection cable and wall bracket
823.122.018 SMS agent Fernalarmierung Extension cable for antenna, 5m with coupling (max. 3 pcs.)





Downloads

Prospekt Flyer PDF 838KB 09.01.2006
Prospekt Handbook PDF 485 09.01.2006
Prospekt Data sheet PDF 116KB 09.01.2006
Prospekt Wiring diagram sheet PDF 122KB 12.05.2009
Prospekt Wiring diagram DWG file DXF Datei 348KB 15.05.2009
Prospekt Software ZIP 9'998KB 09.01.2006
Preisliste Complete price list PDF 77KB 30.12.2013
