XWI timer: On pulse





Description

On pulse timer relay Fixed time ranges: 0.1-3 secs., 1-30 secs., 0.1-3 mins or 1-30 mins. The time range is selected using a rotary switch on the front side of the relay. The relay is available in different versions for AC and DC supply voltages. Single or double output relay, relay energizing indicated with LED. Versions available for assembly on DIN rails or 11-pole plug-in mounting.




Function / Function diagram


When the supply voltage is connected, the relay energizes and the time starts running. When the chosen time has elapsed, the relay de-energizes. The relay de-energizes if the supply voltage is disconnected before the selected time has elapsed.
.

Funktion




Schematic


XF CM




View / Size


XF




Technical data

Time ranges0.1-3 sec. / 1-30 sec. / 0.1-3 min. / 1-30 min.
Repetition accuracy+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Voltage 024-Version24V AC/DC (20-28V)
Voltage 048-Version48V AC/DC (40-56V)
Voltage 115-Version110/120V AC (95-135V)
Voltage 230-Version220/240V AC (195-265V)
Voltage 400-Version380/415V AC (340-460V)
Frequency40-60Hz
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

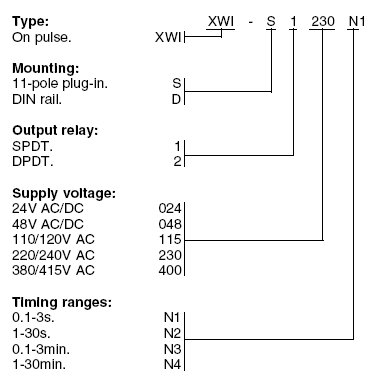

Order overview / Types


XWI
