XW Multifunction relay: Release delay, On- Off Pulse





Description

General

Multifunction timer with 5 functions and 4 time ranges. The function and the time range are selectable via 2 front mounted rotary switches. Time ranges: 0.6-6sec, 6-60sec, 0.6-6min, 6-60min. The time is adjustable on the timer front. The timer can directly be connected to the supply voltage in the range of 10.5-265V AC/DC. Single or double relay output with LED indication of energized relay. Intermittent flashing of LED indicating timing period (over 6 sec.). Versions available for DIN rail or 11-pole plug-in mounting.

Integrated Functions:

Release delay
On pulse with/without control switch
Off pulse
On and off pulse





Function / Function diagram

Release delay
The timer must be connected to the supply voltage permanently. When the switch is closed, the output relay is energized. When the switch is opened again, the timing period starts. The relay de-energizes when the preset time has elapsed.

Funktion

On pulse - without control switch
A jumper must be connected between 5 and 7 (B1 and B2). When supply voltage is connected, the relay is energized and the timing period starts. The relay de-energizes when the preset time has elapsed.

Funktion

On pulse - with control switch
The timer must be connected to the supply voltage permanently. When the control switch is closed, the output relay is energized and the timing period starts. When the preset time has elapsed, the relay deenergizes. To energize the relay again, the control switch must be opened and closed again, after the relay is de-energized.

Funktion

Off pulse
The timer must be connected to the supply voltage permanently. When the control switch is opened after having been closed, the relay is energized and the timing period starts. When the preset time has elapsed, the relay de-energizes.

Funktion

On-off pulse.
The timer must be connected to supply voltage permanently. When the control switch is opened or closed, the relay is energized and the timing period starts. When the preset time has elapsed, the relay de-energizes. During the timing period the control switch cannot change the status of the relay.

Funktion

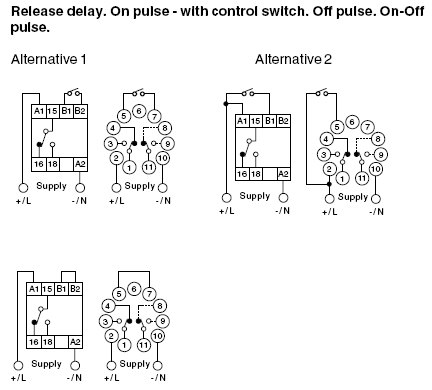

Schematic


XW




View / Size


XW




Technical data

Time ranges0.6-6 sec. / 6-60 sec. / 0.6-6 min. / 6-60 min.
Repetition accuray+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Voltage10.5-265 AC/DC
Frequency40-440Hz
Power consumption0.3-5VA
Portection degree S-VersionIP40
Portection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

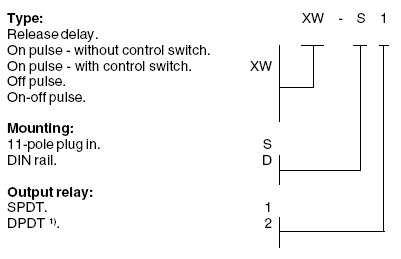

Order overview / Types

Double output relay only available in S2 versions.


XW



Standard Stock Types

Part number Image Description Shop
XW-D1 Relais Multi function relay XW-D1 / DIN-Rail / 1 Contact / 12-240VAC/DC
XW-S1 Relais Multi function relay XW-S1 / 11-pole plug-in / 1 Contact / 12-240VAC/DC
XW-S2 Relais Multi function relay XW-S2 / 11-pole plug-in / 2 Contacts / 12-240VAC/DC
ZKR 118 Relais 11-pole plug-in
