Brodersen XT
Description
Function / Function diagram
Schematic
View
Technical data
Order overview / Types
Downloads
XT Multifunction relay: Assymetrical recycler





Description

General

Asymmetrical recycler with 2 functions and 4 time ranges. The function is selected by mounting a jumper and the time range is selectable via the front mounted rotary switch. The pulse and pause time ranges cover 0.6sec.-60min. or 0.6min.- 60hrs. Pulse and pause time are individually adjustable on the timer front.The timer can directly be connected to the supply voltage in the range of 10.5-265V AC/DC. Single or double relay output with LED indication of energized relay. Intermittent flashing of LED indicating timing period (over 6 sec.). Versions available for DIN rail or 11-pole plug-in mounting.

Integrated Functions:

Asymmetric recycler with pause start
Asymmetric recycler with pulse start





Function / Function diagram

Asymmetrical recycler with pause start
When supply voltage is connected and the pause time has elapsed, the output relay is energized. The relay remains energized through the pulse period. The sequence is repeated until the supply voltage is disconnected. When the supply voltage is disconnected, the timer resets.

Funktion

Asymmetrical recycler with pulse start
By connecting terminals 5 and 7 (B1 and B2) the recycler starts with a pulse i.e. the relay is energized when supply voltage is applied.

Funktion

Please note that the function: Pause start/pulse start is determined at power up. If the terminals 5 and 7 (B1 and B2) are connected or disconnected after power up, it will not change function.

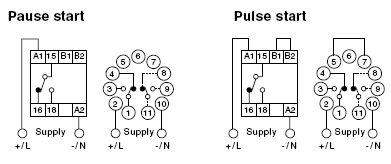

Schematic


XT




View / Size


XT




Technical data

Time ranges standad version0.6-6sec. / 6-60sec. / 0.6-6min.
Time ranges H-Version6-60min. / 0.6-6h. / 6-60h.
Repetition accuray+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
Terminals (D1)Max. conductor size 4 mm². Screw type terminals.
Supply voltage10.5-265 AC/DC
Frequency40-440Hz
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

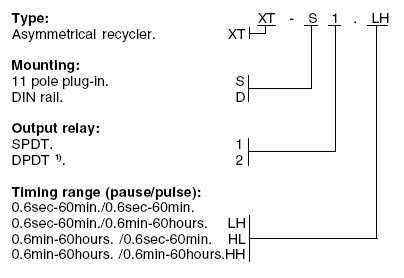

Order overview / Types

Double output relay only available in S2 versions.


XT



Standard Stock Types

Part number Image Description Shop
XT-D1 Relais Multi function relay XT-D1 / DIN-Rail / 1 Contact / 12-240VAC/DC
XT-S1 Relais Multi function relay XT-S1 / 11-pole plug-in / 1 Contact / 12-240VAC/DC
XT-S2 Relais Multi function relay XT-S2 / 11-pole plug-in / 2 Contacts / 12-240VAC/DC
ZKR 118 Relais 11-pole plug-in
