XOT Multifunction relay: One shot assymetrical timer





Description

General

One shot asymmetrical timer with 4 time ranges. The time range is selectable via the front mounted rotary switch. The pulse and pause time ranges cover 0.6sec.-60min. or 0.6min.-60hrs. Pulse and pause time are individually adjustable on the timer front.The timer can directly be connected to the supply voltage in the range of 10.5-265V AC/DC. Single or double relay output with LED indication of energized relay. Intermittent flashing of LED indicating timing period (over 6 sec.). Versions available for DIN rail or 11-pole plug-in mounting.

Integrated Functions:

One-shot asymmetrical without control switch
One-shot asymmetrical with control switch





Function / Function diagram


One-shot asymmetrical without control switch
A jumper must be connected between 5 and 7 (B1 and B2). When supply voltage is connected and the pause time has elapsed, the output relay is energized. The relay remains energized through the pulse period and de-energize when the puls period has elapsed. This is one time sequenze (one shot).

Funktion

One-shot asymmetrical with control switch
The timer must be connected to supply permanently. When the switch is closed, the pause timing period starts. When the preset pause time has elapsed, the output relay is energized. The relay remains energized through the pulse period and de-energize when the puls period has elapsed. To start a one-shot sequenze again, the control switch must be opened and closed again, after the relay is de-energized.

Funktion

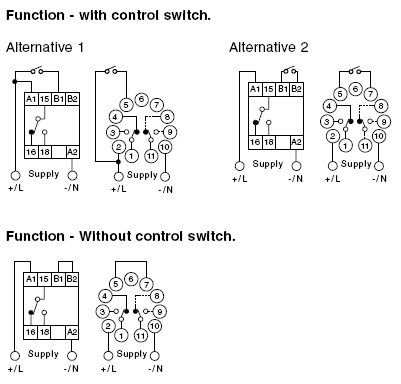

Schematic


XOT




View / Size


XOT




Technical data

Time ranges standad version0.6-6sec. / 6-60sec. / 0.6-6min.
Time ranges H-Version6-60min. / 0.6-6h. / 6-60h.
Repetition accuray+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Supply voltage10.5-265 AC/DC
Frequency40-440Hz
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

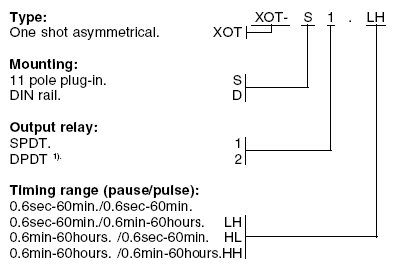

Order overview / Types

Double output relay only available in S2 versions.
