XMW Multifunction relay: On delay, Release delay, Recycler, On pulse





Description

General

Multifunction timer with 5 functions and 4 time ranges. The function and the time range are selectable via 2 front mounted rotary switches.
The time ranges cover 0.6sec.-60min. or 0.6min.-60hrs. The time is adjustable on the timer front. The timer can directly be connected to the supply voltage in the range of 10.5-265V AC/DC. Single or double relay output with LED indication of energized relay. Intermittent flashing of LED indicating timing period (over 6 sec.). Versions available for DIN rail or 11-pole plug-in mounting.

Integrated Functions:

On delay
Release delay
On pulse with or without control switch
Symmetrical recycler with pause start





Function / Function diagram


On delay
The timing period starts when supply voltage is connected. When the preset time has elapsed, the relay is energized. The relay is de-energized when the supply voltage is disconnected.


Funktion

Release delay
The timer must be connected to the supply voltage permanently. When the switch is closed, the output relay is energized. When the switch is opened again, the timing period starts. The relay de-energizes when the preset time has elapsed.

Funktion

On pulse - without control switch
A jumper must be connected between 5 and 7 (B1 and B2). When supply voltage is connected, the relay is energized and the timing period starts. The relay de-energizes when the preset time has elapsed.

Funktion

On pulse - with control switch
The timer must be connected to supply voltage permanently. When the control switch is closed, the output relay is energized and the timing period starts. When the preset time has elapsed, the relay de-energizes. To energize the relay again, the control switch must be opened and closed again, after the relay is de-energized.

Funktion

Symmetrical recycler with pause start
When supply voltage is connected and the pause period has elapsed, the relay energizes. The relay remains energized during the pulse period. The sequence is repeated until the supply voltage is disconnected. The duration of the pause and pulse periods is equal.

Funktion

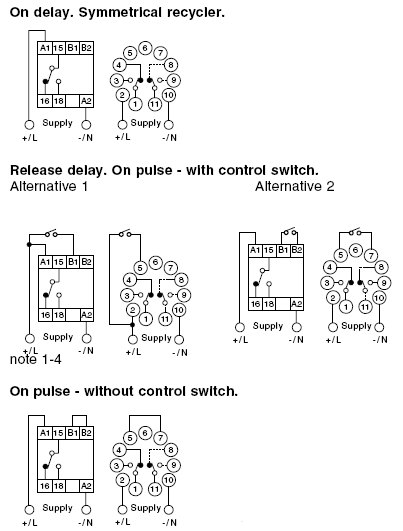

Schematic


XMW




View / Size


XMW




Technical data

Time ranges standad version0.6-6sec. / 6-60sec. / 0.6-6min.
Time ranges H-Version6-60min. / 0.6-6h. / 6-60h.
Start impulseMin. 30mS.
Repetition accuracy+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Voltage10.5-265 AC/DC
Frequency40-440Hz
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

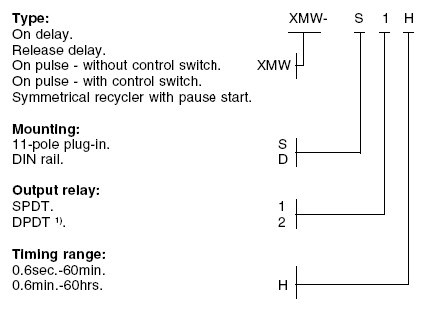

Order overview / Types

Double output relay only available in S2 versions.


XMW



Standard Stock Types

Part number Image Description Shop
XMW-D1 Relais Multi function relay XMW-D1 / DIN-Rail / 1 Contact / 12-240VAC/DC
XMW-S1 Relais Multi function relay XMW-S1 / 11-pole plug-in / 1 Contact / 12-240VAC/DC
XMW-S2 Relais Multi function relay XMW-S2 / 11-pole plug-in / 2 Contacts / 12-240VAC/DC
ZKR 118 Relais 11-pole plug-in
