XM Multifunction relay: On delay, recycler, On pulse





Description

General

Multifunction timer with 4 functions and 4 time ranges. The function and the time range are selectable via 2 front mounted rotary switches. Time ranges: 0.6-6sec, 6-60sec, 0.6-6min, 6-60min. The time is adjustable on the timer front. The timer can directly be connected to the supply voltage in the range of 10.5-265V AC/DC. Single or double relay output with LED indication of energized relay. Intermittent flashing of LED indicating timing period (over 6 sec.). Versions available for DIN rail or 11-pole plug-in mounting.
The function is selected via the rotary switch on the timer front. The switch may only be operated, when the supply voltage is disconnected.

Integrated Functions:

On delay
On pulse without control switch
Symmetrical recycler, pause start
Symmetrical recycler, pulse start





Function / Function diagram


On delay
The timing period starts when supply voltage is connected. When the preset time has elapsed, the relay is energized. The relay is de-energized when the supply voltage is disconnected. If the supply voltage is disconnected before the preset time has elapsed, the timer resets.

Funktion

On pulse without control switch
When supply voltage is connected, the relay is energized and the timing period starts. When the preset time has elapsed, the relay is deenergized. If the supply voltage is disconnected before the preset time has elapsed, the relay will be de-energized and the timer resets.

Funktion

Symmetrical recycler with pause or pulse start.
Depending on the setting of the function switch the timer starts with e.g a pause period, when supply voltage is connected. When the pause period has elapsed, the relay energizes. The relay remains energized during the pulse period. The sequence is repeated until the supply voltage is disconnected. The duration of the pause and pulse periods is equal.

Funktion





Schematic


XMW

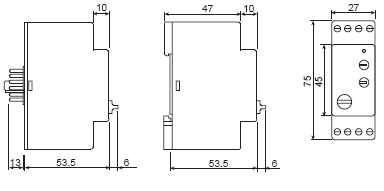

View / Size


XMW




Technical data

Time ranges0.6-6 sec. / 6-60 sec. / 0.6-6 min. / 6-60 min.
Repetition accuray+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Voltage10.5-265 AC/DC
Frequency40-440Hz
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

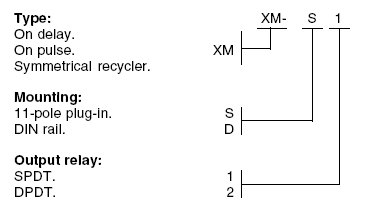

Order overview / Types


XM



Standard Stock Types

Part number Image Description Shop
XM-D1 Relais Multi function relay XM-D1 / DIN-Rail / 1 Contact / 12-240VAC/DC
XM-S1 Relais Multi function relay XM-S1 / 11-pole plug-in / 1 Contact / 12-240VAC/DC
XM-S2 Relais Multi function relay XM-S2 / 11-pole plug-in / 2 Contacts / 12-240VAC/DC
ZKR 118 Relais 11-pole plug-in
