XI timer: on delay


Timer with on delay function. Fixed time ranges: 0.1-3sec, 1-30sec, 0.1-3min or 1-30min. The time is adjustable on the timer front. The timer is available in different versions for AC and DC supply voltage.
Single or double relay output with LED indication of energized relay. Versions available for DIN rail or 11-pole plug-in mounting.

Function / Function diagram

The timing period starts when supply voltage is connected. When the preset time has elapsed, the relay is energized. The relay is deenergized when the supply voltage is disconnected. If the supply voltage is disconnected before the preset time has elapsed, the timer resets.

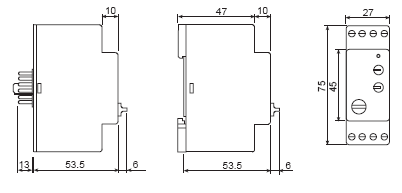

View / Dimensions


Technical data

Time ranges0.1-3 sec. / 1-30 sec. / 0.1-3 min. / 1-30min.
Repetition accuracy+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Voltage 024-Version24V AC/DC (20-28V)
Voltage 048-Version48V AC/DC (40-56V)
Voltage 115-Version110/120V AC (95-135V)
Voltage 230-Version220/240V AC (195-265V)
Voltage 400-Version380/415V AC (340-460V)
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

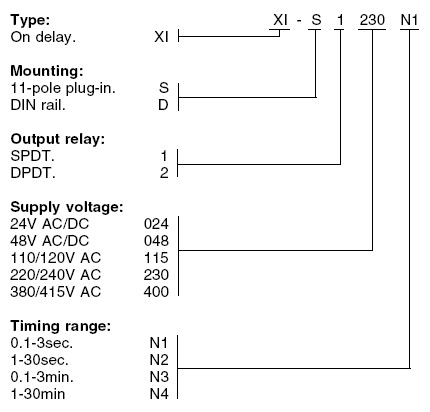

Order overview / Versions


Standard Stock Types

Part number Image Description Shop
XI-S1 230 N3 Relais On delay relay XI-S1 / 11-pole plug-in / 1 Contact / 195-265VAC / 0.1 - 3min.
ZKR 118 Relais 11-pole plug-in
