XF timer release delay





Description

Timer relay with release delay without auxiliary voltage during the time period. Fixed time ranges: 0.1-3 secs., 1-30 secs. or 0.1-3 mins. The time range is selected with the aid of a rotary switch on the front side of the relay. The relay is available in different versions for AC and DC supply voltages. Single or double output relay, relay energizing indicated with LED. Versions available for assembly on DIN rails or 11-pole plug-in mounting.




Function / Function diagram


Release delay without auxiliary supply. If the supply voltage is connected, the relay energizes. When the voltage is disconnected, the time period starts. The relay remains energized until the preset time has elapsed.


Funktion




Schematic


XF CM


View / Size


XF




Technical data

Time ranges0.1-3 sec. / 1-30 sec. / 0.1-3 min.
Repetition accuracy+/- 0.5%
Setting accuracy+/- 10%
Reset timeMax. 100mS
Output relay1 or 2 C/O
Relay load D1/S1Max. 8A/240VAC
Relay load D2/S2Max. 5A/240VAC
Switching frequencyMax. 1,000 cycles per hour at peak load
Electrical lifeMin. 100,000 cycles
Mounting S-Version11-pole plug-in base
Mounting D-VersionDIN rail
TerminalsMax. 4mm² screw terminals
Voltage 024-Version24V AC/DC (20-28V)
Voltage 048-Version48V AC/DC (40-56V)
Voltage 115-Version110/120V AC (95-135V)
Voltage 230-Version220/240V AC (195-265V)
Voltage 400-Version380/415V AC (340-460V)
Frequency40-60Hz
Power consumption0.3-5VA
Protection degree S-VersionIP40
Protection degree D-VersionIP20
Temperature range-20 to +55°C
WeightAppr. 80g

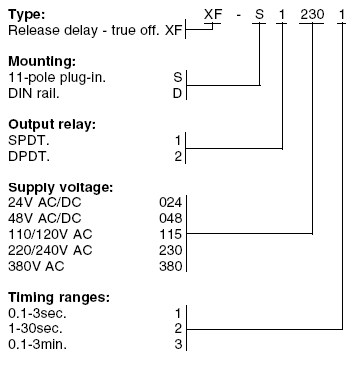

Order overview / Types


XF
