AS-D16 Indicator
Description
Interface
Technical data
Schematic
Dimensions
Order overview
Downloads
AS-D16 Indicator unit serial





AS-D16 Description

The display element AS-D16-24-V24 is used as affordable display and operating element for facilities and devices. It is integrated and controlled via a serial interface. The AS-D16 features 16 DUO-LED, three operating buttons and a buzzer. It is installed into the cabinet or device front face. Easy labelling enabled by the enclosed slid-in strip. Interface and supply lines are connected to the screw terminals on the device backside.

The AS-D16-24-V24 may also be used as detached display of the fault reporting system LSX. It is directly connected to the LSX-CM via a cable. In this case, the power supply comes directly from the LSX. The switch S1 is therefore switched to position "LSX powered".





AS-D16 Interface

All data are transmitted line by line as readable commands. Each message corresponds to one line which must be concluded with ASCII 10 (Newline, '\n'). All data are transmitted as ASCII characters. Binary values are coded in hexa-decimal. Boolean data will result in a check for > ASCII '0'.

The display is organised into 5 columns (bytes) of 8 LEDs (bits).

Column 0: red LED Top
Column 1: red LED Bottom
Column 2: green LED Top
Column 3: green LED Bottom
Column 4: LED status-LED to front and print

5 byte-values are needed to set all columns. The installed buzzer is controlled separately by Boolean value.
This produces the following string, for example:

SVC1C000F4020\n

Broken down, this appears as follows:

SV "Command"
C1 "Byte 0 Red LED top"
C0 "Byte 1 Red LED bottom"
00 "Byte 2 Green LED top"
F4 "Byte 3 Green LED bottom"
02 "Byte 4 Status-LED"
0 "Bit buzzer"
\n "newline"

Command Structure:

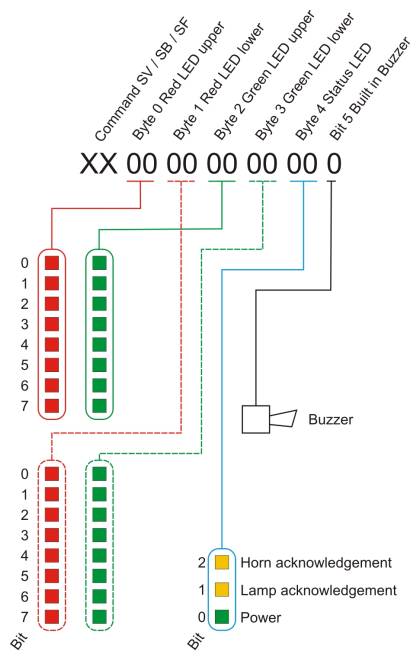

Kommandoaufbau AS-D16




Technical data

Signalling 16 DUO LED / integrated Buzzer
Controller Serial interface V-24 (RS-232)
Control elements Horn acknowledgement / alarm acknowledgement / lamp test
Supply voltage 8-30VDC / 12-28.5VAC, 40-80Hz
Power consumption Max. 3W
Temperature range -0°C to 65°C
Weight 200g
Dimensions WxHxD 72x144x74mm
Front panel cut out 138x68mm
Terminal Screw terminals max. 1.0mm2
Mounting position Any
Protection degree IP20





Schematic

Anschlussschema Anzeigebaustein AS-D16






Dimensions

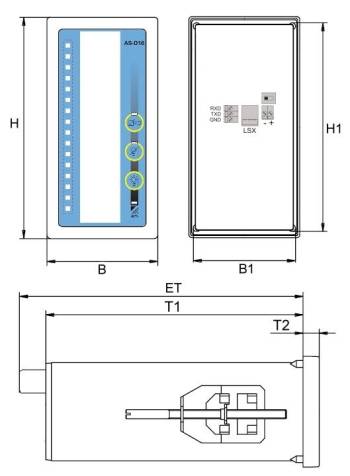

Massbild LED Anzeige AS-D16

H B H1 B1 ET T1 T2
144 mm 72 mm 136 mm 65 mm 75 mm 52 mm 8.5 mm





Order overview

Part number Picture Description Shop
AS-D16-24-V24 Anzeigeeinheit AS-D16 AS-D16 Indicator Unit Serial
