| VOICE agent annunciator system | ||

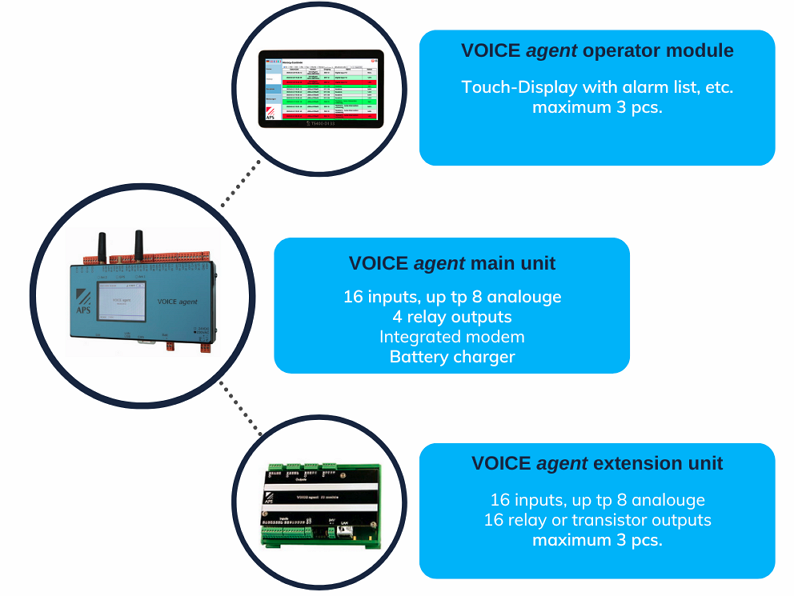

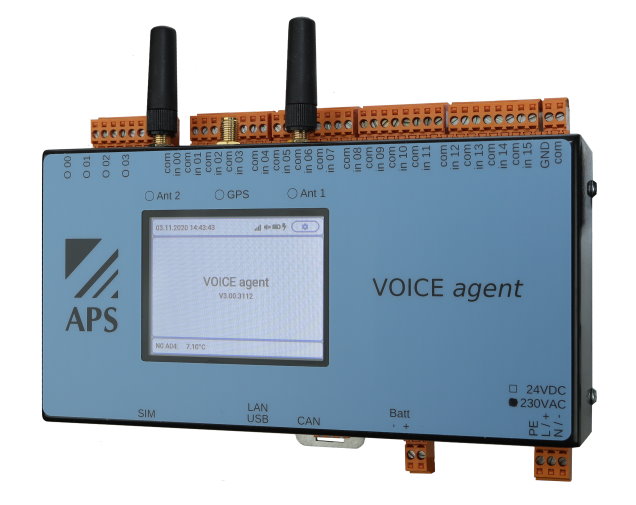

VOICE agent Description The VOICE agent remote alarming module is a compact device designed for DIN rail mounting with a 110-230VAC or 24VDC power supply. The VOICE agent is equipped with 16 iputs for 24VDC. Up to eight of the inputs can be configured as analogue inputs. Against this are four digital relay outputs (e.g. collective- or hornoutput). With the GSM version the outputs can be altered by SMS. All operating states, the time, analogue values and communication activities are shown in the display. Of course, the VOICE agent is also a solution to expand an existing system.
All events are recorded in a log memory. This can be used to find out when an alarm arose and which subscriber acknowledged it.
Voice messages are transmitted using the analogue or GSM telephone network. The subscriber line can be monitored so as to activate the system output should it be disconnected. A test message can be sent at periodic intervals to test device operation. If this message is sent by e-mail it includes the acutal values including the analogues. Calling the device provides the information if there are actually any alarms.
To ensure proper function during power blackout, the VOICE agent has an integrated battery charge controller for an external connected battery pack. The battery conditon is monitored.
The actual status of the in- and outputs is visualised in the browser. Additionally, the value of analogue inputs is shown.
A web browser is used for programming the system. This means that no software needs to be installed or updated. The VOICE agent can be programmed and maintained over the network or the telephone line.
The version 2.01.2328 or higher features the text to speech engine. Spoken messages are generated automatically. This new comfortable function features the following languages: German, French, English and Italian. Please order the language you need together with your VOICE agentProgramming Since all the programming takes place fully in the browser, there is no need to purchase software and updates. The configuration comes with graphics and is menu-based. 3 pikett groups are available for the alarm function, each having 10 subscribers. A separate language file can be specified for each of the 16 inputs. The fault message procedure is carried out in accordance to DIN 19235. Delay times for the inputs, triggering the alarm and also for the jump to the next subscribers in the alarm chain. Each subscriber in the alarm list can acknowledge the fault by entering a code (DTMF tones), thus stopping further processing of the list.
Using the front mounted knob enables the setting of parameters like phone numbers of alarm recipients. This access is protected by an 4 to 6 digit code.
Access to our demo system:
Please click here for having a look in the programming of the VOICE agent, the user is "Gast" and does not need a password

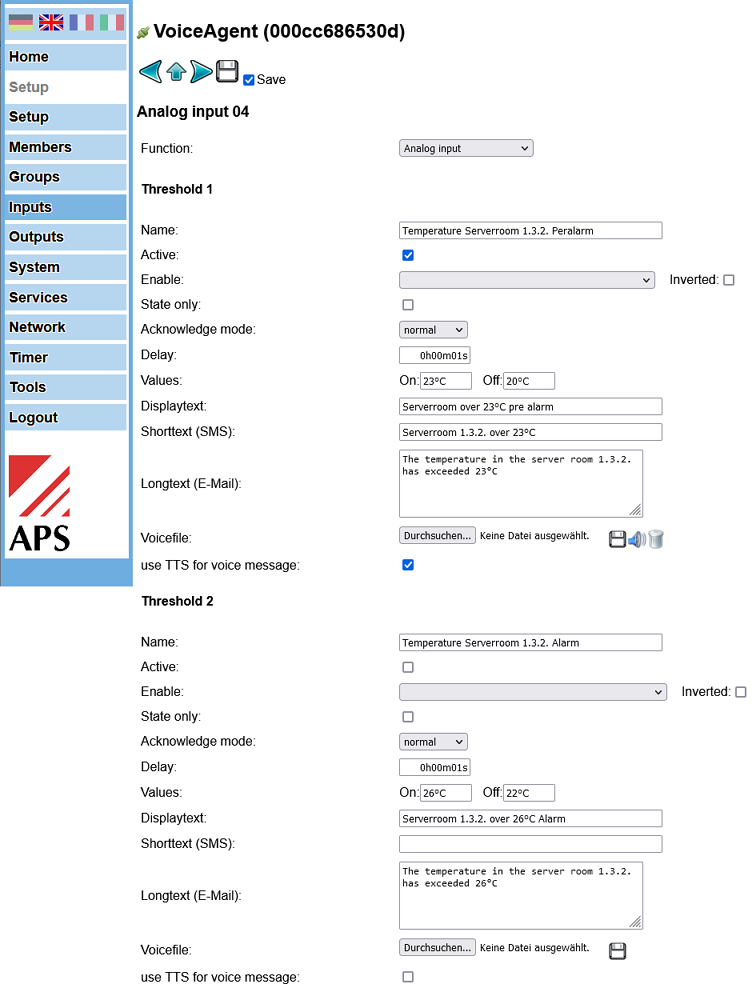

Example of the programming by browser: Analogue input
View of the status monitoring by browser
Technical data
| Inputs | Total 16, up to 8 analogue |
|---|---|
| Digital inputs | 24VDC NO or NC |
| Analogue inputs | 0-10V or 0-20mA with shunt |
| Outputs | 4 potential free relays |
| Switching capacity, outputs | Max. 6A / 230VAC AC1 |
| Supply voltage AC version | 230VAC (100-240VAC / 47-63Hz) |
| Supply voltage DC version | 24VDC (18-70VDC) |
| Power consumption | Max. 10W |
| Internal signal voltage | 15VDC internally generated |
| External signal voltage | 24VDC max. |
| Modem landline version | Analogue a/b |
| Modem GSM version | GSM 900/1800MHz / SMA connector |
| Network LAN | Static IP-Address or DHCP |
| Battery charger | Integrated for 12V accumulator up to 3Ah |
| Display | 3 Row-LCD-display backlit |
| Number of speech files | 32 |
| Number of phone numbers | 30 |
| Number of alarm profiles | 8 |
| Time channels | 8 |
| Speech files formats | Usual sound files like wav, raw, pcm, mp3 |
| Housing | Metal powder coated |
| Dimensions WxHxD (without connectors/knob) | 175 x 90 x 59 mm |
| Dimensions WxHxD (with connectors/knob) | 175 x 120 x 68mm |
| Weight | Appr. 650g |
| Mounting position | Any |
| Mounting | 35mm DIN-Rail or 19" Rack with optional rack panel: PS-3U |
| Connectors | Screw-plugterminals max. 1,5mm2 |
| Ambient temperature | 0°C bis +40°C |
| Protection degree | IP20 |
| Real time clock | Automatic leap-year adjustment. Accurate to less than +/- 1s at 25°C |
Schematic

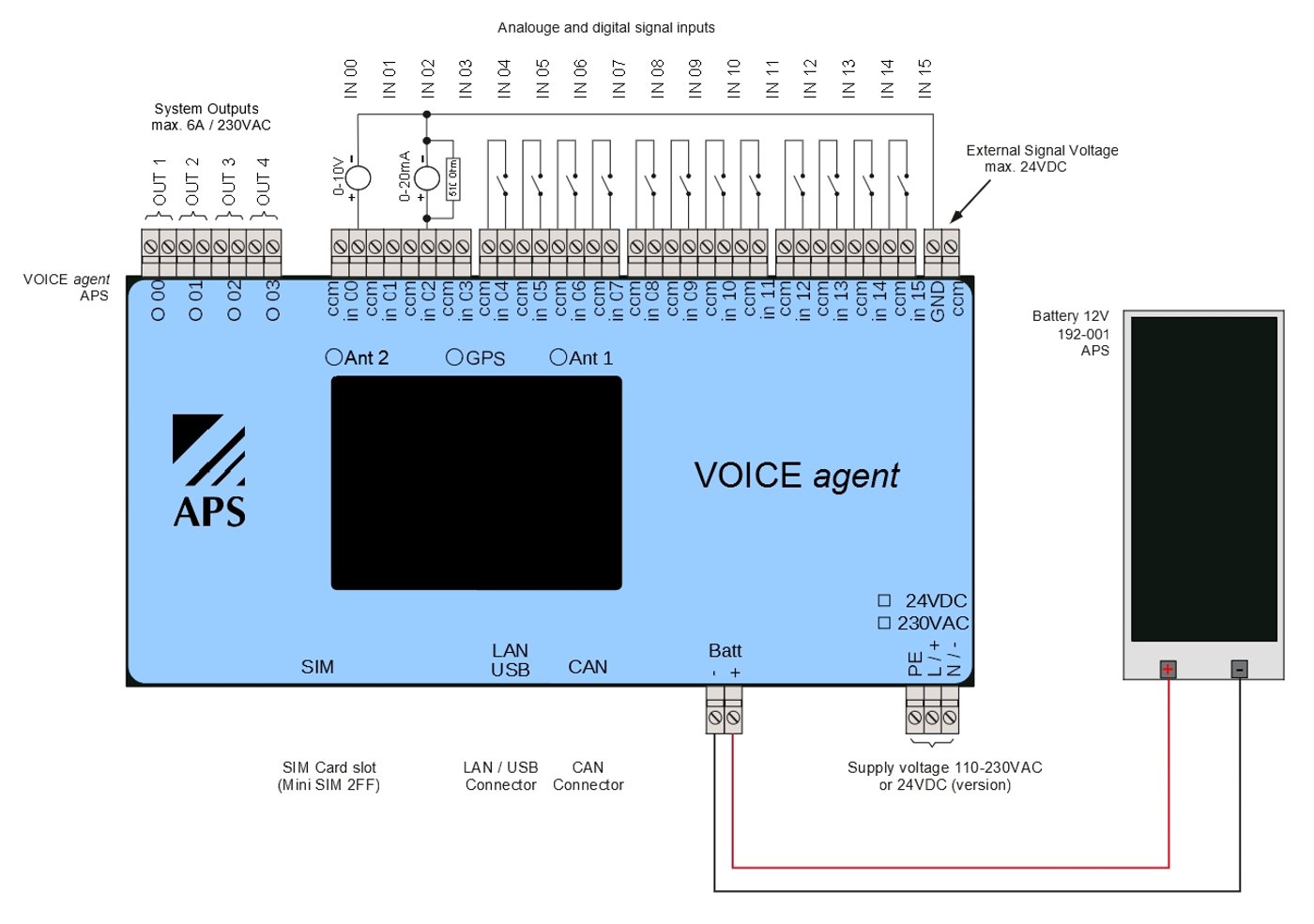

Please click on the image for a larger view or go to the download of the wiring diagram sheet
Dimensions

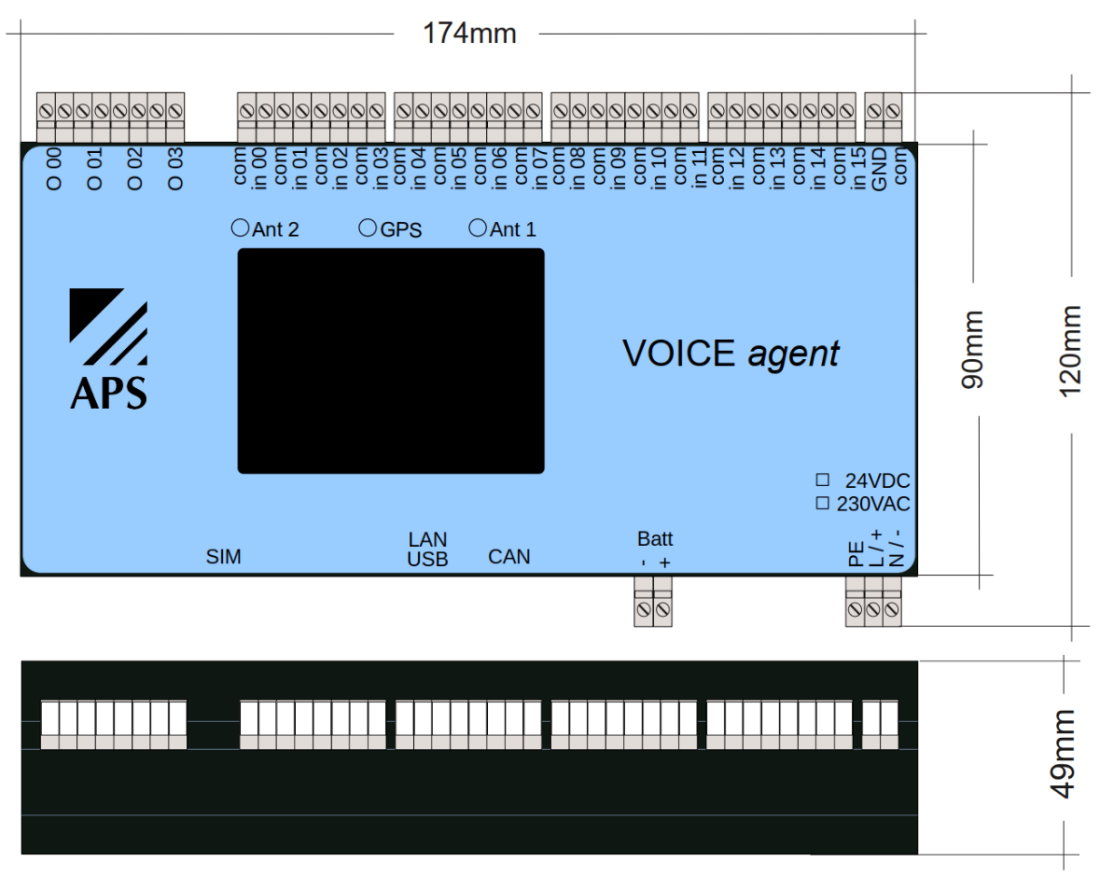

Please click on the image for a larger view
