XOT Multifunction relay-One-shot asymmetrical activation with or without auxiliary contact
|
Description
One shot asymmetrical timer with 4 time ranges. The time range is selectable via the front mounted rotary switch. The pulse and pause time ranges cover 0.6sec.-60min. or 0.6min.- 60hrs. Pulse and pause time are individually adjustable on the timer front.The timer can directly be connected to the supply voltage in the range of 10.5-265V AC/DC. Single or double relay output with LED indication of energized relay. Intermittent flashing of LED indicating timing period (over 6 sec.). Versions available for DIN rail or 11-pole plug-in mounting.Function / Function diagram
One-shot asymmetrical without control switch
A jumper must be connected between 5 and 7 (B1 and B2). When supply voltage is connected and the pause time has elapsed, the output relay is energized. The relay remains energized through the pulse period and de-energize when the puls period has elapsed. This is one time sequenze (one shot).
One-shot asymmetrical with control switch
The timer must be connected to supply permanently. When the switch is closed, the pause timing period starts. When the preset pause time has elapsed, the output relay is energized. The relay remains energized through the pulse period and de-energize when the puls period has elapsed. To start a one-shot sequenze again, the control switch must be opened and closed again, after the relay is de-energized.

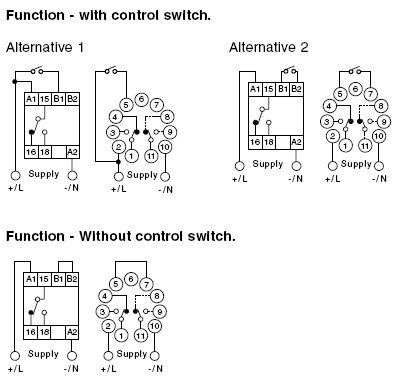

Diagram
View / Size
Technical data
| Time ranges |
0.6-6 secs, 6-60 secs, 0.6-6 mins H Version: 6-60Min., 0.6-6h., 6-6h |
| Repeat accuray |
+/- 0.5% |
| Setting accuracy |
+/- 10% |
| Reset time |
Max. 100mS |
| Output relay |
1 or 2 C/O |
| Relay load |
D1/S1: Max 8A/240VAC S2: Max 5A/240VAC |
| Switching frequency |
Max. 1,000 cycles per hour at peak load |
| Electrical life |
Min. 100,000 cycles |
| Mounting |
S1/S2: 11-pole plug-in base D1: DIN rail |
| Terminals (D1) |
Max. conductor size 4 mm2.
Screw type terminals. |
| Supply voltage |
10.5-265 AC/DC |
| Frequency |
40-440Hz |
| Power consumption |
0.3-5VA |
| Protection degree |
S1/S2: IP40 D1: IP20 |
| Temperature range |
-20 - +55 °C |
| Weight |
ca. 80g |

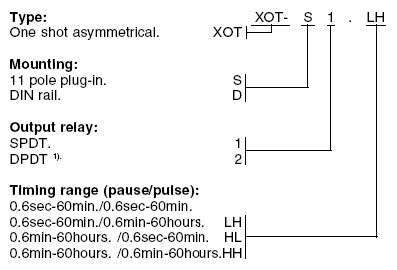

Order overview / Types
Double output relay only available in S2 versions.
