600XU Multifunctional Timer





Description

Selec multifuntional timer with 13 functions and 10 time ranges from 0.1s to 3h.
Easy setting with three front knobs. Slim space saving design, only 17,5mm wide. 35mm DIN Rail mount.





Settings

The settings of the 600XU timer are made with the three front knobs
The time setting is realised in two steps. The time range is preset with knob 2. The time setting is done afterwards with knob 3. The function is chooosen with knob 4.


Selec Zeitrelais



Function overview
Please click on the image for a larger view

Massbild 600XU




Technical data

Input
Accuracy setting±5% off full scale
Accuracy repetition± 0.5%
ResetReset time < 100 msec
Output
ContactSPDT (1 C/O)
Contact ratingNO/5A , NC /3A @250V
Functional specifications
AOn delay
BInterval
CCyclic equal OFF first
CiCyclic equal ON first
DPulse output, 500ms fixed
EDelay on break / off delay
FOn- and off delay
HInterval after break
ISingle shot
JRetriggerable single shot
KLatching relay
AiDelay with totalise
BiInterval with totalise
Time ranges
0,1 - 1s, 0,3 - 3s, 1 - 10s, 3 - 30s, 0,1 - 1min, 0,3 - 3min, 1 - 10min, 3 - 30min, 0,1 - 1h, 0,3 - 3h
Electrically
Supply voltage AC20-240V AC 50 / 60 Hz
Supply voltage DC12-240V DC
Power consumption3,2 VA
General
Temperature operation0 - 50 C (32 - 122 F)
Temperature storage-20 - 75 C (-4 - 167 F)
Humidity95% rF
Weight64g
Protection level housingIP40
Protection level terminalsIP20





Schematic


Please click on the image for a larger view

Anschlussschema 600XU

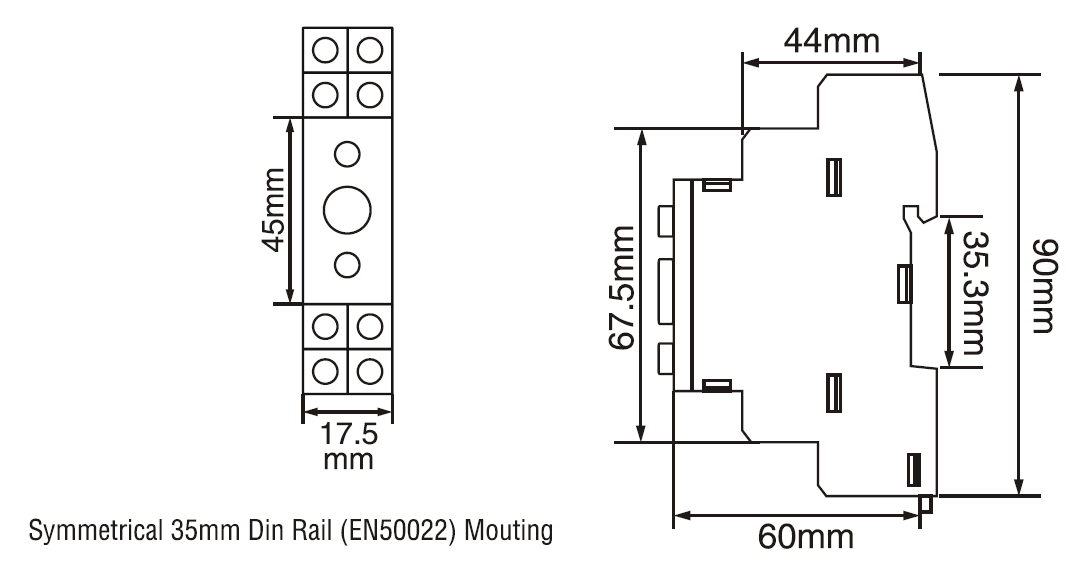

Dimensions


Please click on the image for a larger view

Massbild 600XU




Order overview


Order numberDesignationAppendageStock*1Price*2
600XUMultifunction timer relay 13 functions20-240VAC / 12-240VDC / 1x CO4228.90 CHF
